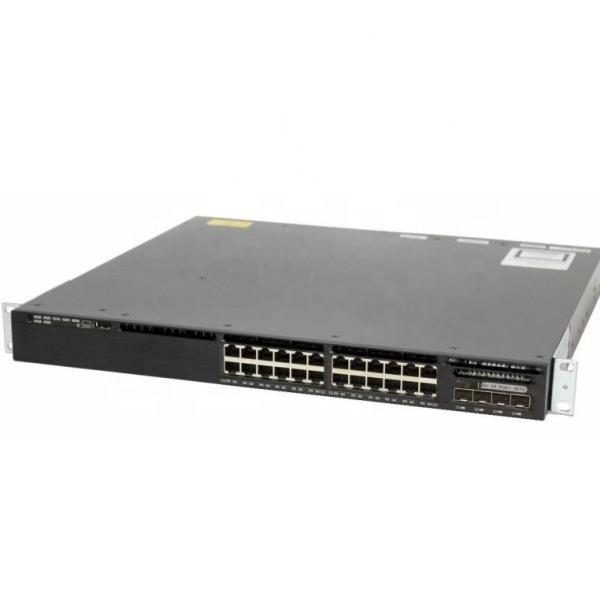

Cisco Network Switch 3650 series 24 Port Managed switch WS-C3650-24TS-L

The Cisco WS-C3650-24TS-L is a 24-port data switch with a 4x1G uplink and LAN Base feature. It is part of the Cisco Catalyst 3650 series, designed to deliver exceptional networking performance and scalability for small to medium-sized businesses.

Quick Spec

Table 1: Quick Spec of WS-C3650-24TS-L

Product Features

• ● Converged Wired plus Wireless Access
• ● Distributed Intelligent Services
• ● Advanced wired plus wireless QoS capabilities
• ● A rich set of security features for wired plus wireless users
• ● Cisco StackWise-160 Technology
• ● Foundation for Open Network Environment

Product Applications

• ● Small Offices and Branches
• ● Education
• ● Retail
• ● Benefits

• WS-C3650-24TS-L Specification

  WS-C3650-24TS-L Specifications
  Switching capacity	176 Gbps on 48-port models (non-multigigabit models) 92 Gbps on 24-port models (non-multigigabit models) 254 Gbps on 24-port Multigigabit models with 2x10G uplink 272 Gbps on 24-port Multigigabit models with 4x10G uplink 392 Gbps on 48-port Multigigabit models with 4x10G uplink 472 Gbps on 48-port Multigigabit models with 8x10G uplink 472 Gbps on 48-port Multigigabit models with 2x40G uplink
  Stacking bandwidth	160 Gbps
  Total number of MAC addresses	32,000
  Total number of IPv4 routes (ARP plus learned routes)	24,000
  FNF entries	48,000 flow on 48-port models 24,000 flows on 24-port models
  DRAM	4 GB
  Flash	2 GB (non-Multigigabit models) and 4GB (Multigigabit models)
  VLAN IDs	4,094
  Total switched virtual interfaces (SVIs)	1,000
  Jumbo frame	9198 bytes
  Total routed ports per 3650 stack	208
  Number of access points per switch/stack	25
  Number of wireless clients per switch/stack	1000
  Total number of WLANs per switch	64
  Wireless bandwidth per switch	Up to 40 Gbps on 48-port models Up to 20 Gbps on 24-port models
  Supported Aironet access point series	3700, 3600, 3500, 2600, 1600, 1260, 1140, 1040
  Forwarding Rate	41.66 Mpps
  Dimensions (H x W x D)	1.73 x 17.5 x 17.625 Inches
  Weight	15.15
  MTBF Hours	661,800
