| Categories | Button Type Load Cell |
|---|---|
| Series: | Spoke type weighing sensor |
| Features: | circular |
| Mounting Type: | Screw fixation |
| Description: | Spoke type weighing sensor, SC219 load cell |
| Model Number: | SC219 |
| Type: | Load Cell |
| Place of Origin: | Guangdong, China |
| Brand Name: | SNC |
| Use: | Force measurement |
| Theory: | Convert force into electrical signal |
| Output: | mV/V |
| Capacity: | 2T, 5T, 10T, 25T, 40T, 50T, 100T, 200T, 300T |
| Accuracy Class: | C2 |
| Rated Output: | 2.0±0.04mV/V |
| Combined Error: | ≤±0.030 %RO |
| Overload Rating: | 200% Rated Capacity |
| IP Rating: | IP66 / IP67 |
| Input Resistance: | 725±8 ohm |
| Output Resistance: | 700±5 ohm |
| Insulation Resistance: | 5000 MΩ(50V) |
| Material: | Alloy Steel |
| Price: | $25-500/pieces |
| Company Info. |
| Hunan Jinlian Cloud Information Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
Features:

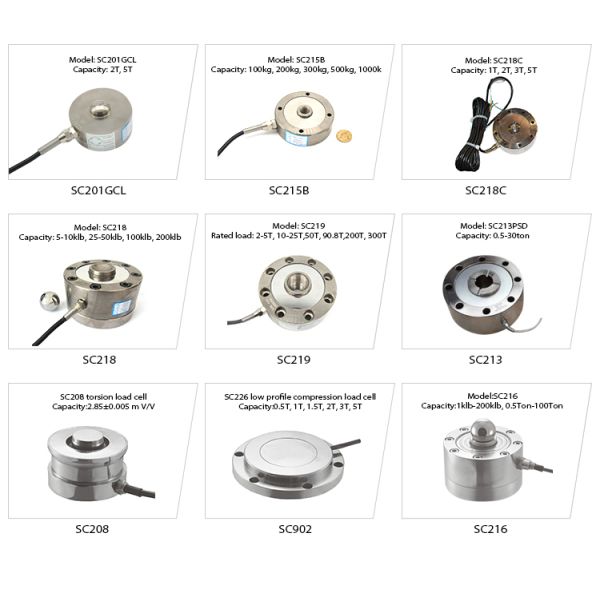

Model: SC219
Rated load: 2-5T, 10-25T, 50T, 90.8T, 200T, 300T
Accuracy: C1 (0.05%) / C2 (0.03%)
Material: Alloy steel
Application: Tank/ silo/ mixer weighing system, electronic platform scales, hopper scales, etc
Main features: Laser sealed IP67 Alloy steel structure; Bellows hermetically sealed by laser, nickel plated, Waterproof and anti-corrosion
Parameter:
Application | Testing equipment |
Model | SC219 |
Capacity | 2T, 5T, 10T, 25T, 40T, 50T, 100T, 200T, 300T |
Rated output | 2.0±0.04mV/V 4.0±0.04mV/V |
Accuracy class | C2 |
Maximum number of verification intervals | 2000Nmax |
Minimum load cell certification intervals | Emax/5000 Vmin |
Combined error | ≤±0.030 % RO |
Creep | 0.02 %RO/30min |
Temp. effect on sensitivity | 0.0016 %RO/℃ |
Temp.effect on zero | 0.005%RO/℃ |
Zero balance | ±1.0 %RO |
Input resistance | 725±8 ohm |
Output resistance | 700±5 ohm |
Insulation resistance | 5000 MΩ(50V) |
Recommended excitation voltage | 8-15 V |
Compensated temperature range | -10-+40℃ |
Operating temperature range | -35-+80 ℃ |
Safe overload | 150 %RO 120%RO |
Ultimate overload | 200%RO 150 %RO |
Loadcell material | Alloy steel stainless steel |
Connecting cable | 2-15T: Φ5.7x8m 40-300T: Φ5.7x13m |
Method of connecting wire | Red- input+, black- Input-. Green- Output+, White- output - |
| Sensorcon Product Lists | |||
| Strain Gauge | Load Cell | Torque Sensor | Display |
| Linear Strain gauge-AA | Wireless sensor | Slip ring rotary torque sensor | Platform scale display |
| Half bridge strain gauge-BB,HA,GB,FB | Micro load cell | Contactless rotary torque sensor | Truck scale display |
| Shear/torque strain gauge-AB,HA | Single point load cell | Static torque sensor | Controller |
| Full bridge strain gauge-EB, FG,FD | Button load cell | Meters | Junction box |
| Tee Rosettes strain gauge-CA,BA | Shear beam load cell | Coupling | Big screen display |
| Round type strain gauge | S type load cell | Amplifier | |
| Semi-conductor strain gauge | Column load cell | ||
| Bridge type load cell | |||
Sensor and Control Co., Ltd. was founded in 2006, mainly engaged in Torque Sensor, Load Cell, Pressure Transducer, Strain Gauges and Weighing Indicators. Since establishment, we insist the guidelines of "Customer Oriented, Quality Focused, Professional Service "All products we supply are environment friendly and has passed RoHS test.
Sensorcon, in accordance with the principle of the introduction of advanced professional ultrasonic gas cleaning, clean Room patches, automatic temperature compensation and detection, high and low temperature testing and thermal experiments, laser welding and printing, CAD design, manufacturing and testing sensor test equipment and production technology ,manufacture all varieties of sensors, high precision, stable performance and also has antiseptic, waterproof, anti-explosion, anti-lightning, etc favored deeply by users.
1.How to place an order ?
Please provide us more details of what you want, such as:
application, measurement range, output, accuracy, thread type,
electric connector and other related parameters.
2.Does SNCoffer any discount ?
Yes, if you buy large QTY, please contact us, we will give you a
big discount.
3.What terms of payment are available ?
We accept T/T, L/C, Trade assurance, Western Union, Paypal, etc.
4.When will you arrange the production ?
We will arrange the production immediately after receiving your
payment.
5.How do you ensure good product quality ?
We have a complete quality control system, all of our products are
fully checked by IQC, OQC departments
before shipping to our clients.
6.Do you have warranty ?
Yes, we provide 1 year warranty for most of our products. Some
products we offer 15month to 24 months warranty.
